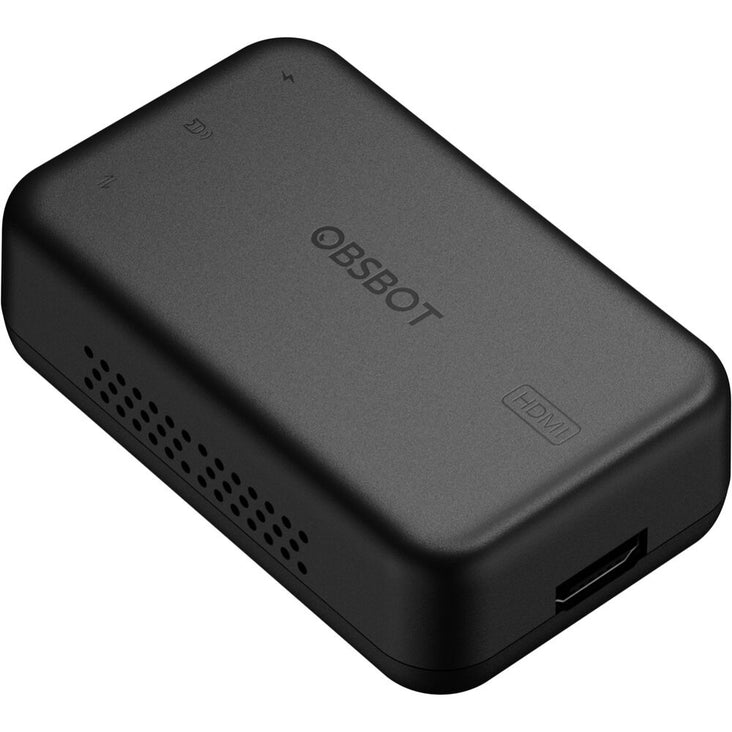

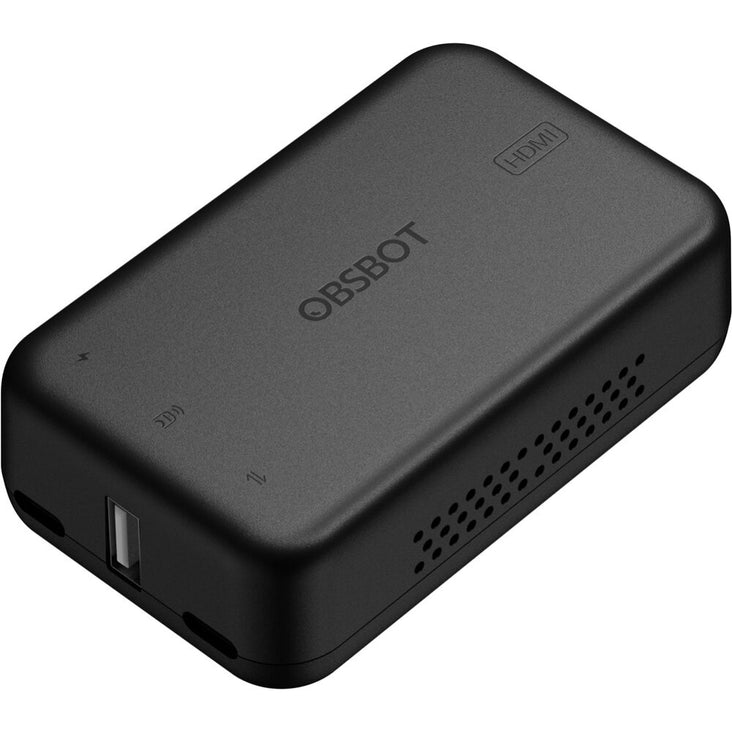

12 Month Warranty*View and monitor the UVC output of your webcam or PTZ camera with low latency and resolutions up to UHD 4K60 on any HDMI display using this UVC to HDMI Adapter from OBSBOT. This plug-and-play adapter features two USB-C inputs-one for connecting your UVC source signal and one for powering the unit. It also includes a USB-A input for compatibility with an optional OBSBOT remote controller and USB wireless receiver (sold separately). The HDMI 2.0 output connects to your display, and the unit comes with a 5' USB-C to USB-C cable for connectivity or power, with support for optional 9V/2A or 5V/2A USB-C power adapters. Firmware upgrades can be performed using a USB flash drive, when available.
Specifications
- Converts USB-C UVC for HDMI Connectivity
- Up to 4K60 Output Resolution Supported
- Plug-and-Play Installation
- Low Latency
- Firmware Upgrade Support
| USB I/O |
1 x USB-C (Charging Only) Female Input
|
| 1 x USB-A Female Input | |
| Video I/O |
1x USB-C Input
|

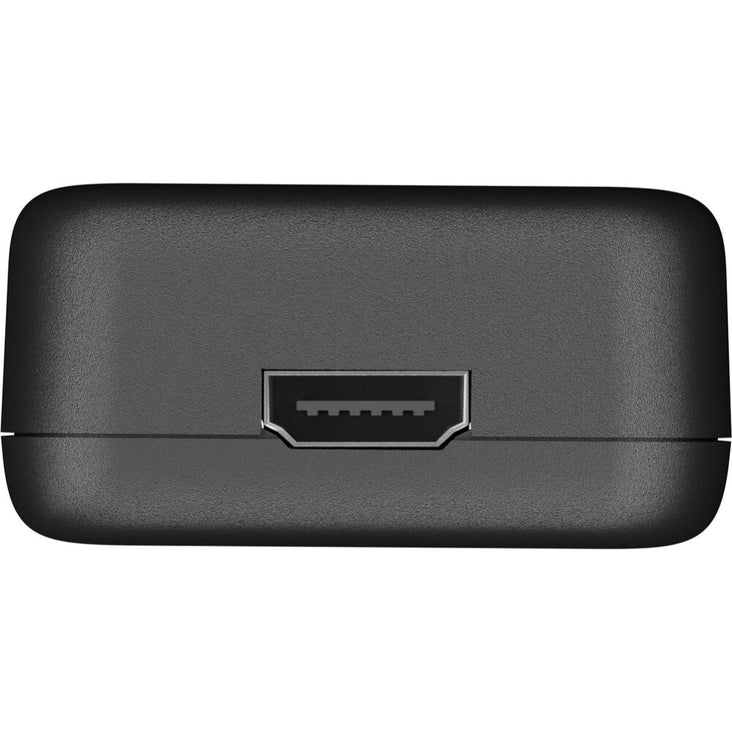

| 1x HDMI 2.0 Output | |
| Compatibility |
Camera with UVC1.1/UVC1.5 Protocol
|
| Input Resolutions |
SMPTE:
|
| UHD 4K at 30 fps | |
| 1080p at 30/50/60 fps | |
| 720p at 25/30/50/60 fps | |
| VESA: | |
| 3840 x 2160 at 30 fps | |
| 1920 x 1080 at 25/30/50/60 fps | |
| 1280 x 768 at 60 fps | |
| 1280 x 720 at 30/50/60 fps | |
| Output Resolutions |
SMPTE:
|
| UHD 4K at 30/60 fps | |
| 1080p at 30/50/60 fps | |
| 720p at 25/30/50/60 fps | |
| VESA: | |
| 3840 x 2160 at 30/60 fps | |
| 1920 x 1080 at 25/30/50/60 fps | |
| 1280 x 768 at 60 fps | |
| 1280 x 720 at 30/50/60 fps | |
| Decoding Formats |
MJPEG, YUV, H.264
|
| DC Input Power |
5 / 9 VDC at 2 A
|
| Operating Temperature |
32 to 87°F / 0 to 55°C
|
| Operating Humidity |
20 to 55%
|
| Colour |
Black
|
| Dimensions |
9.05 x 5.55 x 2.72 cm
|
| Weight |
78 g
|
What's Included
1 x OBSBOT UVC to HDMI Adapter
1 x USB-C Cable (5')
