12 Month Warranty*The DJI Transmission system builds on DJI's established aerial video transmission technology, offering a comprehensive solution that integrates a video receiver, monitor, controller, and recorder into one package. Designed for seamless compatibility with Ronin-series products and DJI Master Wheels, it revolutionises transmission with a cutting-edge experience that extends vision beyond boundaries.
Long-Distance HD Live Feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 40Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.
Seamless Auto Frequency Hopping
O3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
One Transmitter with Multiple Receivers
Both the High-Bright Remote Monitor and the Video Receiver support one transmitter with multiple receivers for video and audio feeds in two transmission modes. The default Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams such as lighting, art department, and makeup on sets with large crews, and a live feed's bitrate and input feed's video codecs can be displayed in real-time as well. If you want to switch camera index for monitoring, simply select the corresponding index without having to check the transmission channel, which greatly enhances the shooting efficiency.
Independent Recording and Playback
The High-Bright Remote Monitor features a microSD card slot and allows for independent recording and storage of up to 1080p/60fps H.264 live feeds. The remote monitor can automatically start and stop recording in synchronisation with the camera, making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.
Built-in Motion Controller
The High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.
End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimised to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.
Diverse Settings
For ultra-long-distance transmission, it is recommended to disable Broadcast mode and use Control mode.
Transmission of Metadata
The DJI Video Receiver supports camera metadata transmission via SDI. When used with ARRI, RED, and other mainstream cinema cameras, it can transmit file name, timecode, recording trigger, camera settings (aperture, focal length, etc.), and lens information (aperture, focal length) from the receiver to monitors and QTAKE, allowing directors, cinematographers, and DIT teams to receive detailed shooting information on set.
Encrypted Transmission
DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorised access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.
Video Transmitter Ports
The video transmitter includes dual 3G-SDI Input and Loop Out Ports, as well as an HDMI 1.4 Type-A Input Port, all supporting 1080p/60fps video. A USB Type-C port is available for voice calls and firmware updates, while a dedicated Power Input Port ensures reliable operation.
Video Receiver Ports
The video receiver features a 3G-SDI Output Port and HDMI 1.4 Type-A Output Port, all supporting 1080p/60fps video. A USB Type-C port handles voice calls and firmware updates. The Power Input Port accepts 6.8V to 17.6V, supporting CAN input/output and connection with DJI Master Wheels.
High-Bright Remote Monitor Ports
The high-bright remote monitor includes a 3.5mm stereo jack for real-time audio monitoring, a microSD card slot for internal recording and playback, and an HDMI 2.0 Type-A Input Port supporting 4K/60fps video. It also features a USB Type-C port for webcam use and firmware updates, along with versatile power input options (6.8V to 17.6V). Additionally, the monitor has an HDMI 1.4 Type-A Output Port for 1080p/60fps video and a 3G-SDI Output Port.
Specifications
- 20,000ft 1080p/60fps Transmission
- Unlimited Number of Receivers
- Seamless Auto Frequency Hopping
- End-to-end Ultra-low Latency
- Transmits Metadata via SDI
- Dual-link SDI + HDMI simultaneous output
| DJI Wireless Video Transmitter | |
|
Antenna I/O
|
2x RP-SMA Female
|
| Video I/O |
1x BNC (3G-SDI) Input
|
| 1x HDMI 1.4 Input | |
| 1x BNC (3G-SDI) Loop Output | |
| Embedded Audio |
HDMI/SDI
|
| Power I/O |
1x USB-C Input
|
| 1x Barrel Input | |
| Encryption |
256-Bit AES
|
| Wireless Range |
3.7 Miles / 6 km (Line-of-Sight)
|
| # of Channels |
23
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
Non-DFS Frequencies
|
| 2.4 to 2.48 GHz | |
| 5.15 to 5.25 GHz | |
| 5.72 to 5.85 GHz | |
| DFS Frequencies | |
| 5.25 to 5.35 GHz | |
| 5.47 to 5.6 GHz | |
| 5.65 to 5.72 GHz | |
| Latency |
68 ms
|
| RF Power |
< 33 dBm
|
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
| Video Format |
HDMI/SDI (10-Bit 4:2:2 YCC)
|
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Audio Format |
16-Bit 48 kHz PCM Audio
|
| Wireless Video Compression |
Compressed
|
| Input Power |
6 to 18 VDC
|
| Battery Type |
1x L-Series (Interchangeable Mount)
|
| Power Consumption |
11 W
|
| Mounting |
1x Cold Shoe
|
| 1x 3/8"-16 Female | |
| 2x 1/4"-20 Female | |
| Certifications |
CE, FCC
|
| Operating Temperature |
22 to 77°F / -10 to 45°C
|
| Dimensions |
12.7 x 8.7 x 2.6 cm
|
| Weight |
0.350 kg
|
| DJI Wireless Video Receiver | |
|
Antenna I/O
|
2x RP-SMA Female
|
| Video I/O |
1x BNC (3G-SDI) Output
|
| 1x HDMI 1.4 Output | |
| Embedded Audio |
HDMI/SDI
|
| Power I/O |
1x USB-C Input
|
| 1x Barrel Input | |
| Encryption |
256-Bit AES
|
| Wireless Range |
3.7 Miles / 6 km (Line-of-Sight)
|
| # of Channels |
23
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
Non-DFS Frequencies
|
| 2.4 to 2.48 GHz | |
| 5.15 to 5.25 GHz | |
| 5.72 to 5.85 GHz | |
| DFS Frequencies | |
| 5.25 to 5.35 GHz | |
| 5.47 to 5.6 GHz | |
| 5.65 to 5.72 GHz | |
| Latency |
70 ms
|
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
| Video Format |
HDMI/SDI (10-Bit 4:2:2 YCC)
|
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Audio Format |
16-Bit 48 kHz PCM Audio
|
| Wireless Video Compression |
Compressed
|
| Input Power |
6 to 18 VDC
|
| Battery Type |
1x L-Series, DJI WB37 (Interchangeable Mount)
|
| Power Consumption |
9 W
|
| Certifications |
CE, FCC
|
| Operating Conditions |
22 to 77°F / -10 to 45°C
|
| Dimensions |
12.7 x 8.7 x 2.6 cm
|
| Weight |
0.350 kg
|
| DJI WB37 Battery Charging Hub (USB Type-C) | |
|
Quantity
|
1
|
| Compatibility |
DJI WB37
|
| Power I/O |
1x USB-C Input
|
| Weight |
0.150 kg
|
| DJI WB37 LiPo Battery Pack for Select DJI Accessories (7.6V, 4920mAh) | |
|
Compatibility
|
DJI CrystalSky / High-Bright Remote Monitor / Cendence Remote Controller / Video Transmitter / FPV Remote Controller / Transmission
|
| Battery Chemistry |
Lithium-Ion Polymer (LiPo)
|
| Battery Capacity |
4920 mAh / 37.39 Wh
|
| Battery Configuration |
2 S / 7.6 V
|

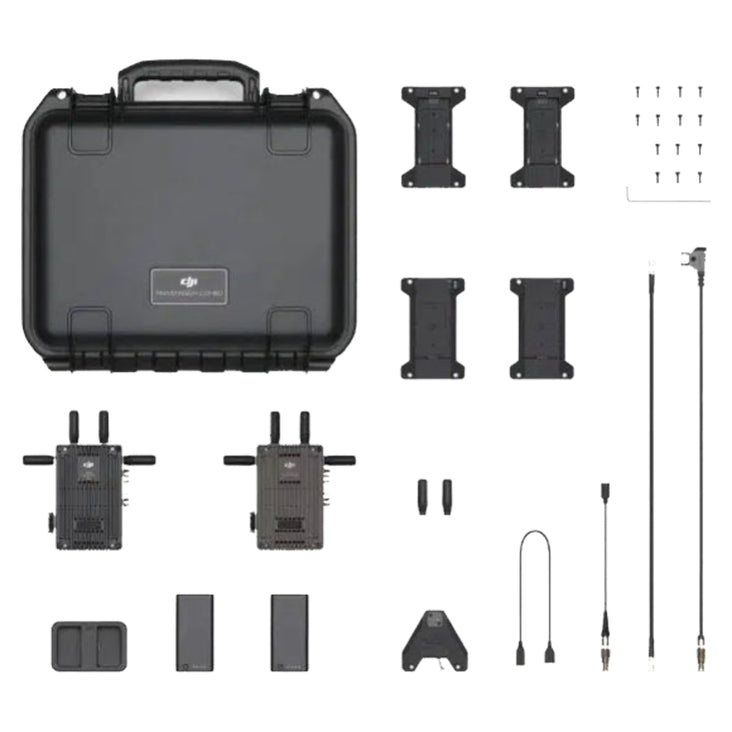

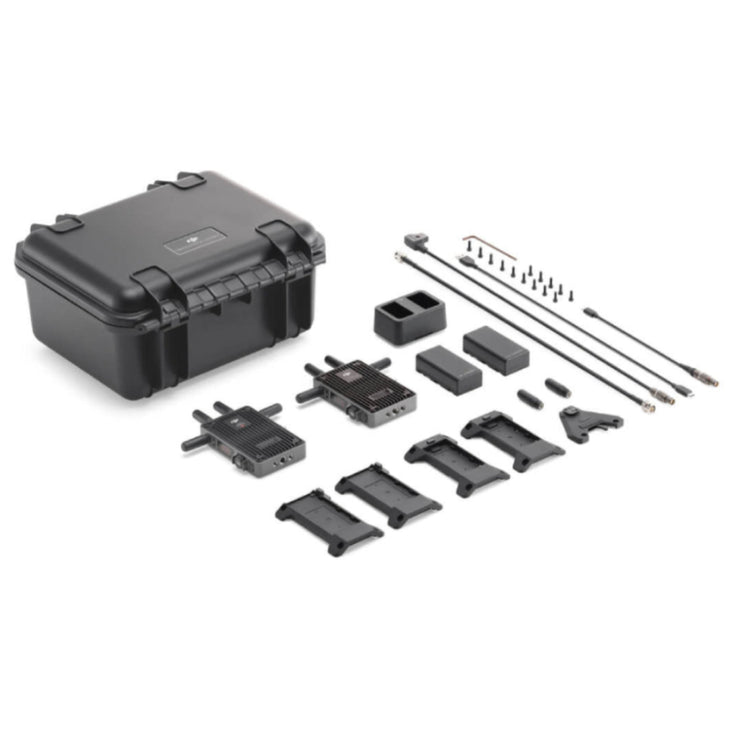

What's Included
1 x DJI Video Transmitter
1 x DJI Video Receiver
2 x WB37 Battery Adapter
2 x WB37 Intelligent Battery
1 x WB37 Battery Charging Hub (USB-C)
1 x RS Gimbal Mounting Plate
2 x NP-F Battery Adapter
1 x DC to P-TAP Power Cable
1 x DJI Transmission USB-C Power Cable
1 x SDI Cable
1 x USB-C Cable
1 x Protector Case
2 x Ronin Video Transmission Antenna
1 x Installation Toolkit
