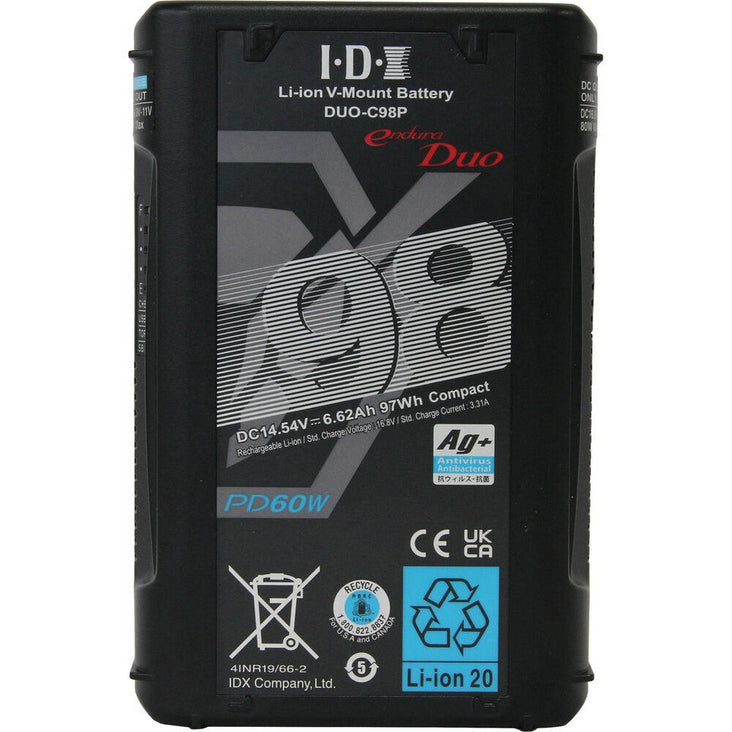

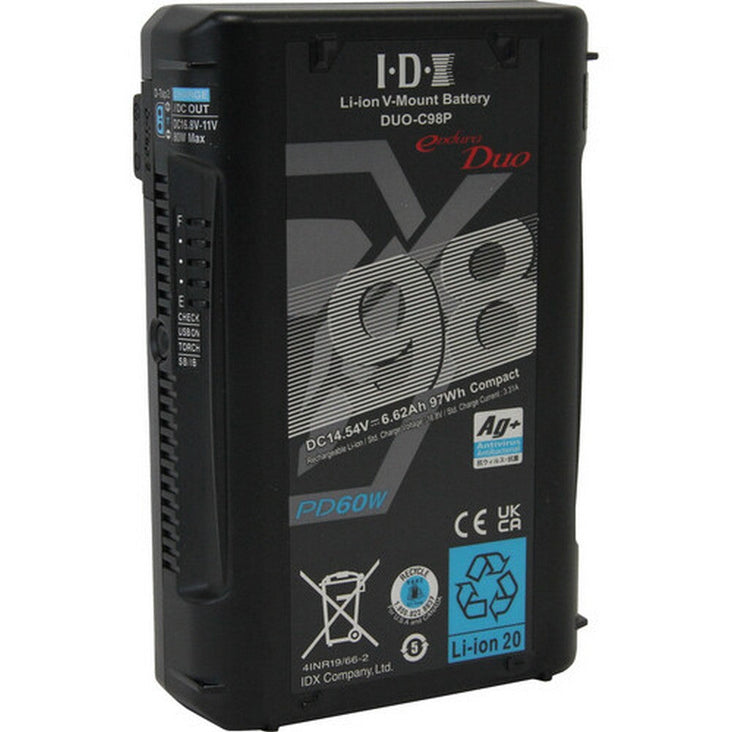

IDX System Technology DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*The DUO-C98P can output power via its V-mount, two D-Tap outputs, and USB Type-C port. One of the D-Tap ports is an Advanced port that can also be used to charge the battery with an optional D-Tap charger such as the UC-PD1. The USB Type-C is also a PD Fast Charging input that allows you to fast-charge the battery using up to 60W.
Designed with battery circuit protection against overcharge, overdischarge, overcurrent, and exposure to high temperatures, it protects your battery from the rigors of production. A 5-LED battery life indicator on its side provides a quick visual indication of the charge state of your battery, and its housing is designed with
Key Features
- Suitable for cinema camera productions that need a high-capacity battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
- V-Torch light for easy attachment to the plate
- Handles up to 10.5A loads
- Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
- USB Type-C output port with 60W PD fast charging input
- Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature

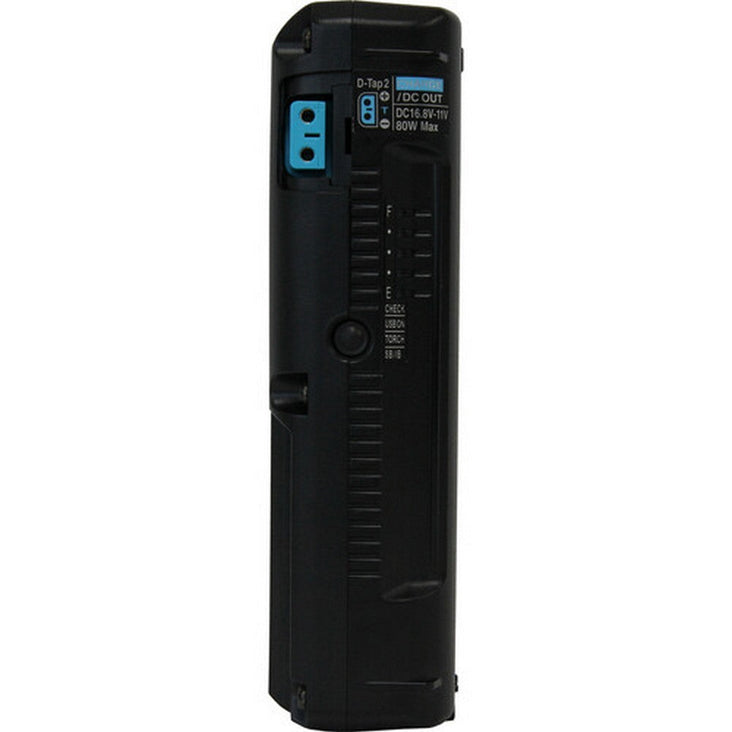

- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
- Antiviral and antimicrobial body for hygienic peace of mind
Features
- 14.5V 97Wh V-Mount Battery
- SMBus Data Info Displays in Viewfinder
- Handles up to 10.5A Loads
- Two 80W D-Tap Accessory Outputs
- D-Tap & USB PD Fast Charging Port
- Battery Circuit Protection
- V-Torch, 5-LED Battery Life Indicator
- Compatible with UC-PD1 & VL-DT1 Chargers
Specifications
|
Mount / Series Type |
V-Mount |
|
Chemistry |
Lithium-Ion |
|
Battery Capacity |
6600 mAh / 97 Wh |
|
Output Voltage |
14.5 VDC |
|
Maximum Load |
115 W, 10 A (Peak) |
|
Accessory I/O |
1 x D-Tap Input/Output 80 W Regulated |
|
Maximum Load (Accessory I/O) |
80 W (D-Tap) |
|
USB Output |
5 V, 3 A |
|
Storage Temperature |
-4 to 122°F / -20 to 50°C |
|
Charging Temperature |
32 to 104°F / 0 to 40°C |
|
Discharging Temperature |
-4 to 113°F / -20 to 45°C |
|
Dimensions (W x H x D) |
3.74 x 5.75 x 1.54" / 9.5 x 14.61 x 3.91 cm |
|
Weight |
1.41 lb / 0.64 kg |
|
Package Weight |
1.625 lb |
|
Box Dimensions (LxWxH) |
6.8 x 4.7 x 2.2" |
What's Included
1 x IDX System Technology DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery
