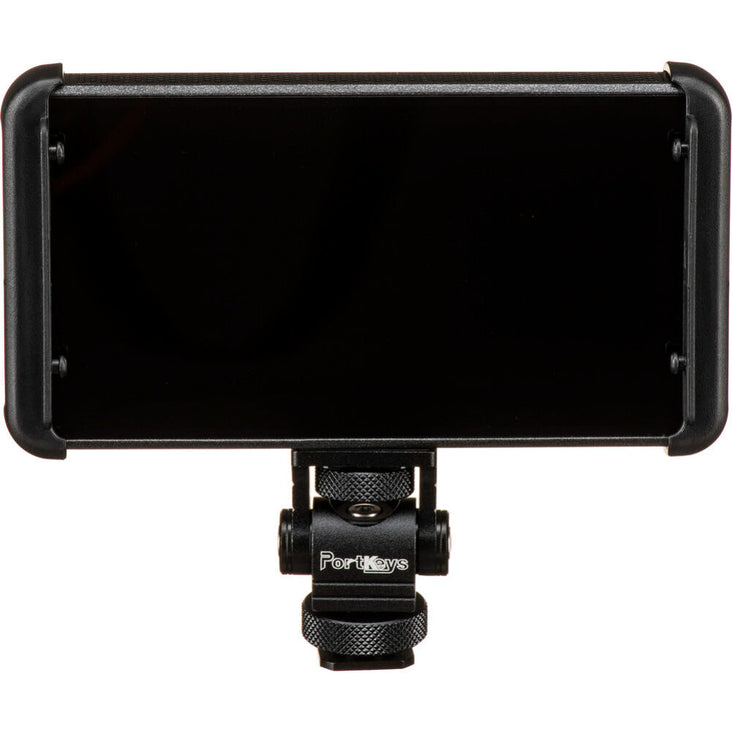

PortKeys PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
Couldn't load pickup availability
Buy a Demo & Save
Buy an Open Box & Save
Interest Free Finance
12 Month Warranty*- Click & Collect (Sydney)
- Friendly & Expert Advice
- 100% Australian Stock
- 7 Day Exchanges*
12 Month Warranty*The PT5 II 5" 4K HDMI Touchscreen Monitor from PORTKEYS is the perfect choice for bright on-camera monitoring. It has HDMI input and output, 3D LUT input via a USB Type-A port, and support for up to DCI 4K24 video signals. Plus, it's been updated with improved heat dissipation, with extra holes on the enclosure to keep it cool.
Redesigned Enclosure
The PT5 II enclosure has been redesigned for better cooling with additional vents
Up to 4K HDMI Input
Supports up to DCI 4K24 input via HDMI
Touchscreen

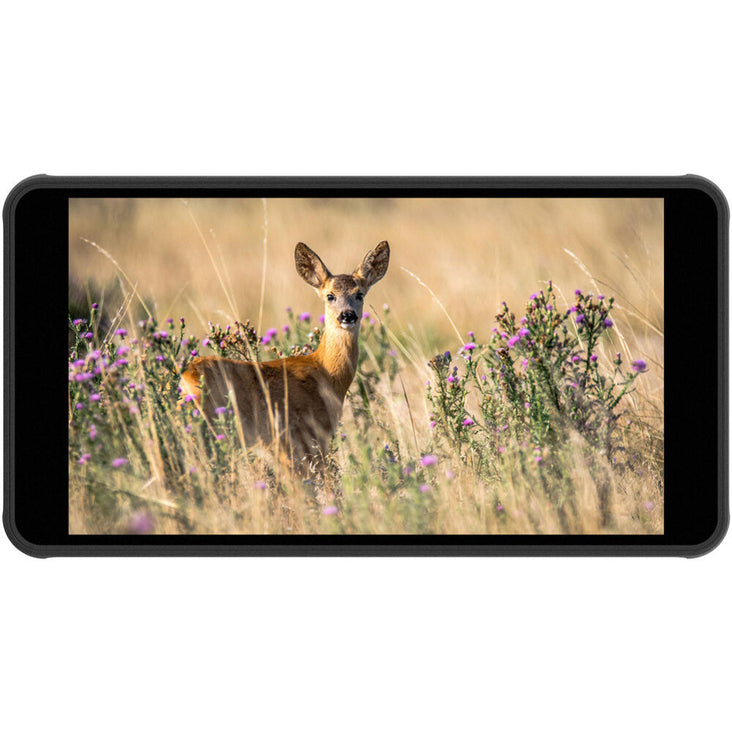

Bright, compact, 5" touchscreen for on-camera monitoring
3D LUT Input
Upload your 3D LUT via the USB Type-A port for customized viewing
Imaging Tools
- Exposure: RGB and luma waveforms, zebra, false colour, and histogram
- Focus: Peaking and zoom functions
- Framing: Check field, grids, image flip, and crosshair marks
- Display: Anamorphic, colour temperature, contrast, and sharpness
- Display: Brightness, tint, backlight, and underscan
- Battery: Remaining power
- Audio: Metering
Specifications
- 5" 1920 x 1080 Touchscreen Display
- 4K HDMI I/O, 3D LUT Import via USB Port
- 500 cd/m² Bright/1000:1 Contrast Ratio
- Updated with Heat Vents for Cooling
- Focus Peaking, RGB & Luma Waveforms
- False colour, Histogram & Audio Metering

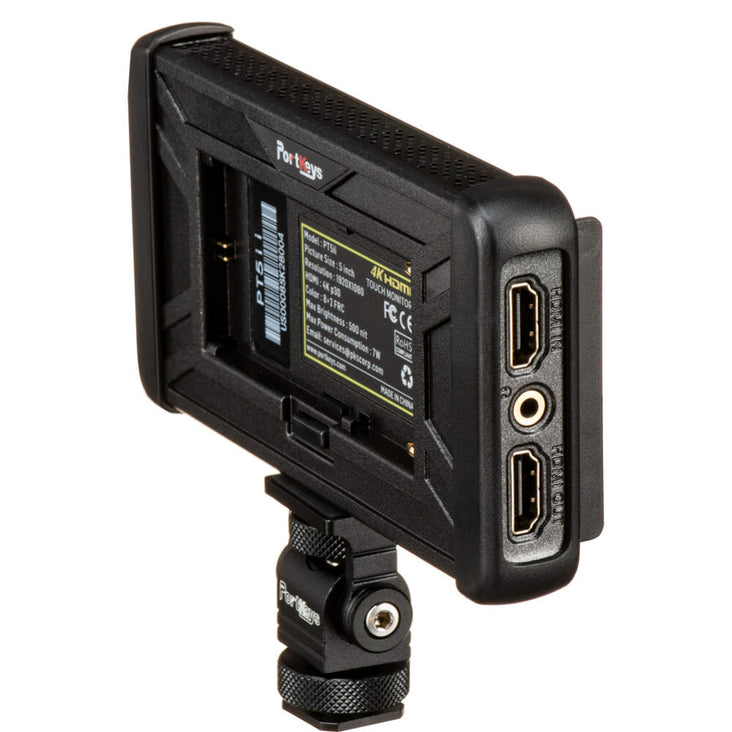

- 3.5mm Headphone Jack, On/Off Switch

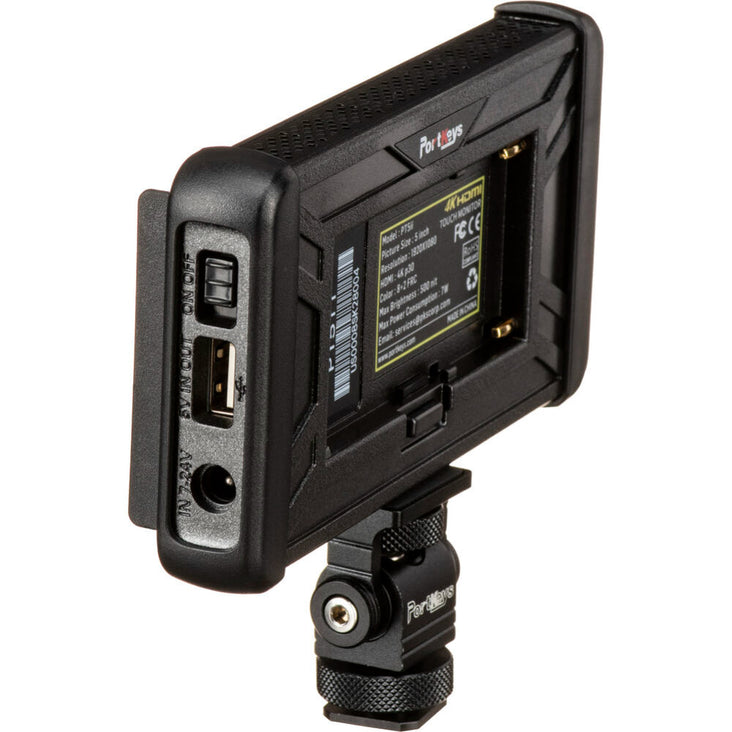

- DC Input, USB Type-A Output Port

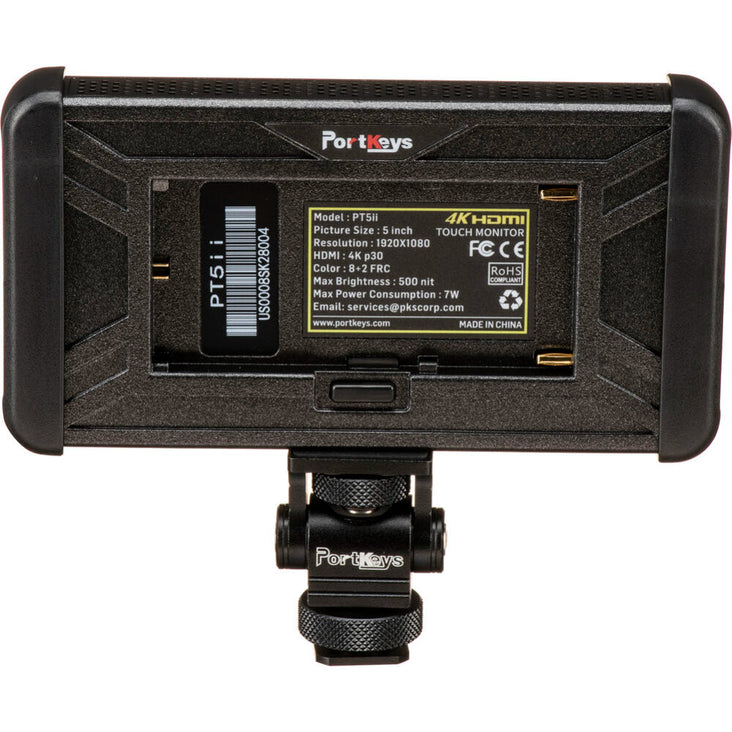

- Sunshade & Tilting Shoe Bracket
- Optional L-Series & LP-E6 Plates
| Panel Type |
IPS-Type LCD
|
| Display Size |
5.0" / 12.7 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:09
|
| Viewing Angle |
Horizontal: 178°
|
| Vertical: 178° | |
| Touchscreen |
Yes
|
| Maximum Brightness |
500 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Bit Depth / Colour Support |
8-Bit+FRC (1.07 Billion Colours)
|
| Pixels Per Inch (ppi) |
441 ppi
|
| Real-Time LUT Monitoring |
SDR
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
|
| Video I/O |
1 x HDMI Input
|
| 1 x HDMI Output | |
| Embedded Audio |
HDMI
|
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1 x Barrel (24 VDC) Input
|
| Other I/O |
1 x USB-A Input/Output
|
| Video Format |
HDMI
|
| DCI 4K: 24 | |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94/50 | |
| 480i: 60/59.94/50 | |
| DC Input Power |
7 to 24 VDC
|
| Battery Type |
1 x LP-E6 or L-Series
|
| Power Consumption |
7 W
|
| Material of Construction |
Plastic
|
| Dimensions |
13.6 x 7.2 x 1.7 cm
|
| Weight |
130 g
|
What's Included
1 x Portkeys PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support

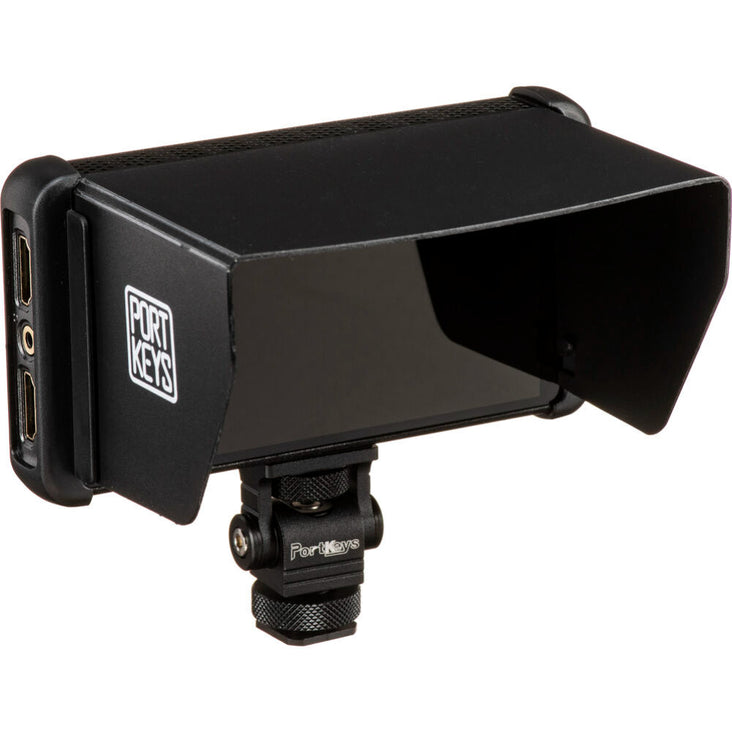

1 x Sun Hood Kit

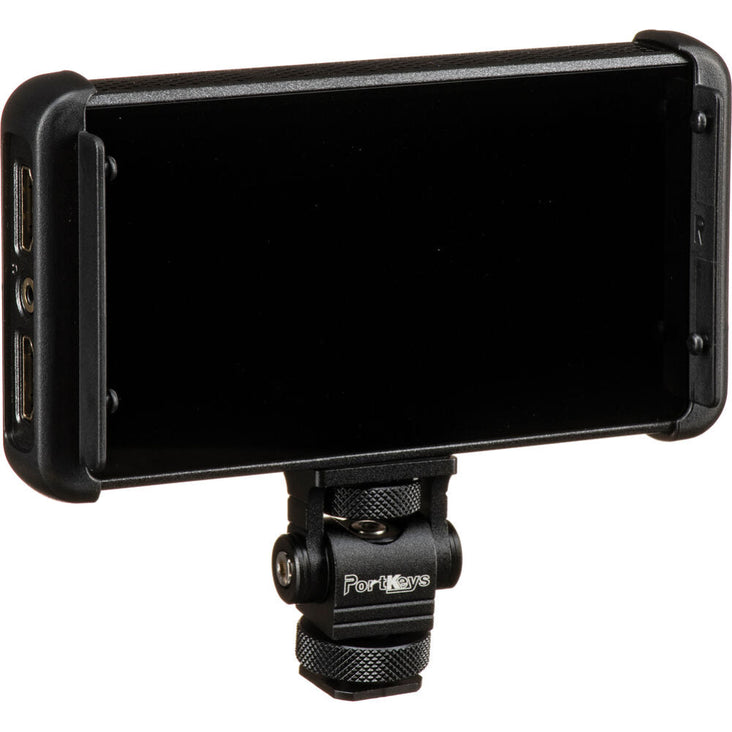

1 x Tilting Shoe Mount
1 x HDMI Type-A Cable
1 x Micro-HDMI Cable

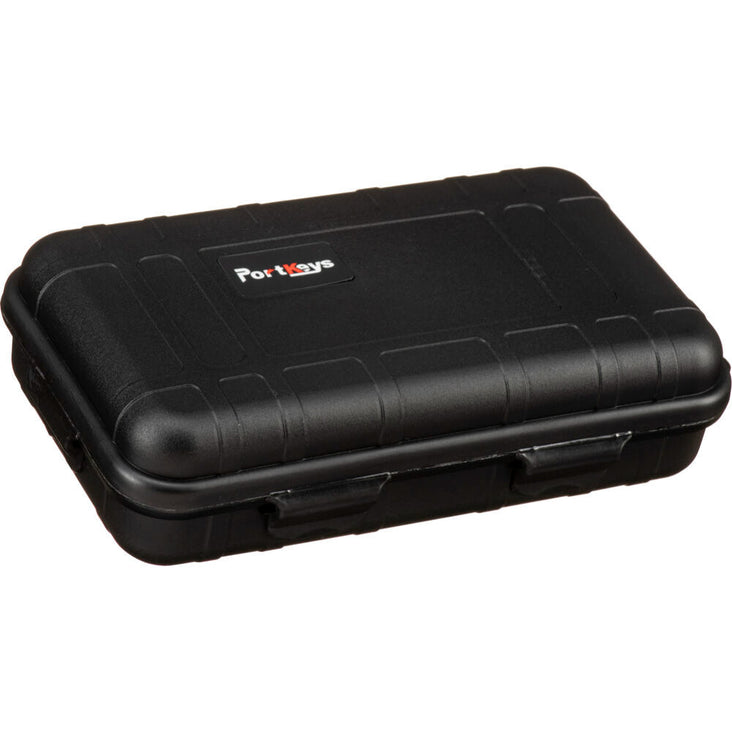

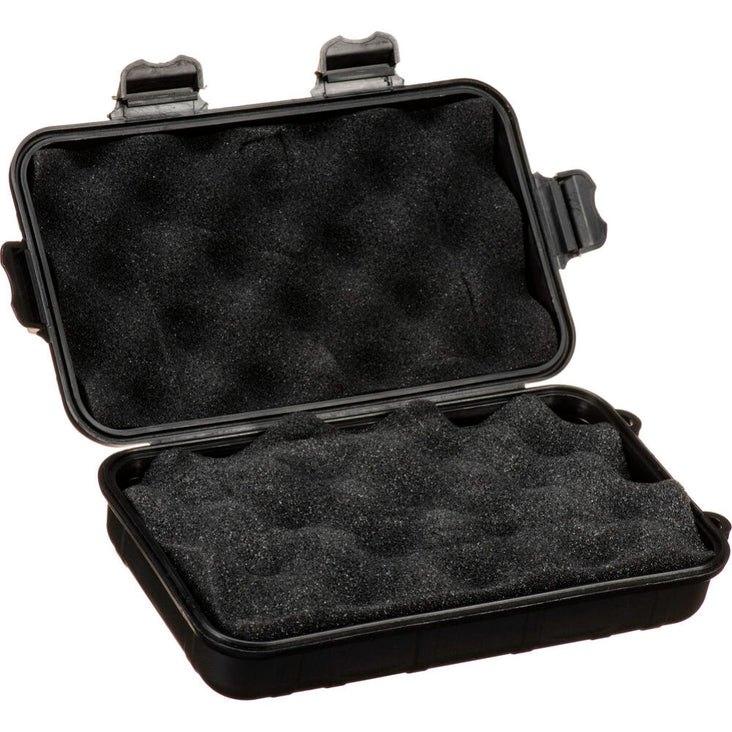

1 x Safety Case
