Yongnuo Complete Wireless TTL HSS Flash Control Kit For Nikon

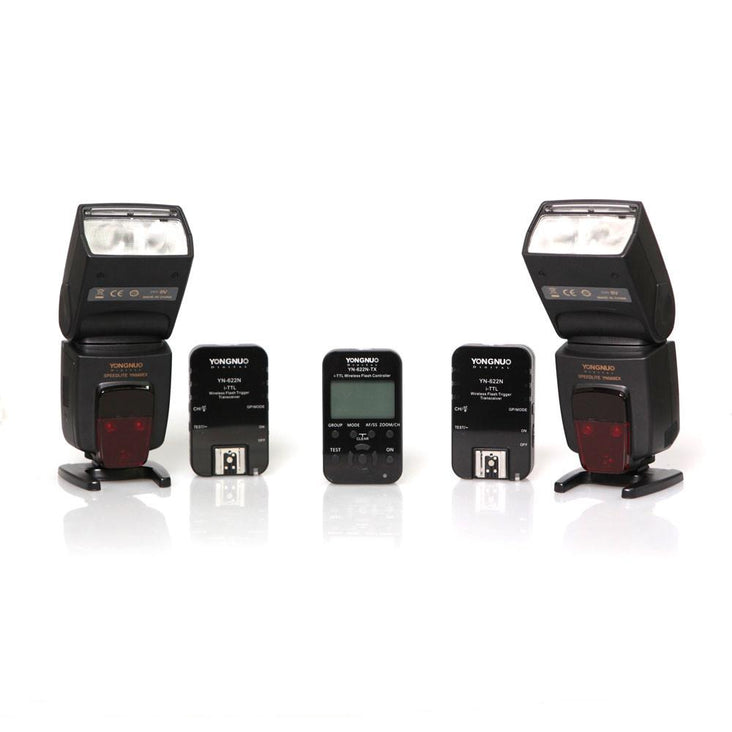

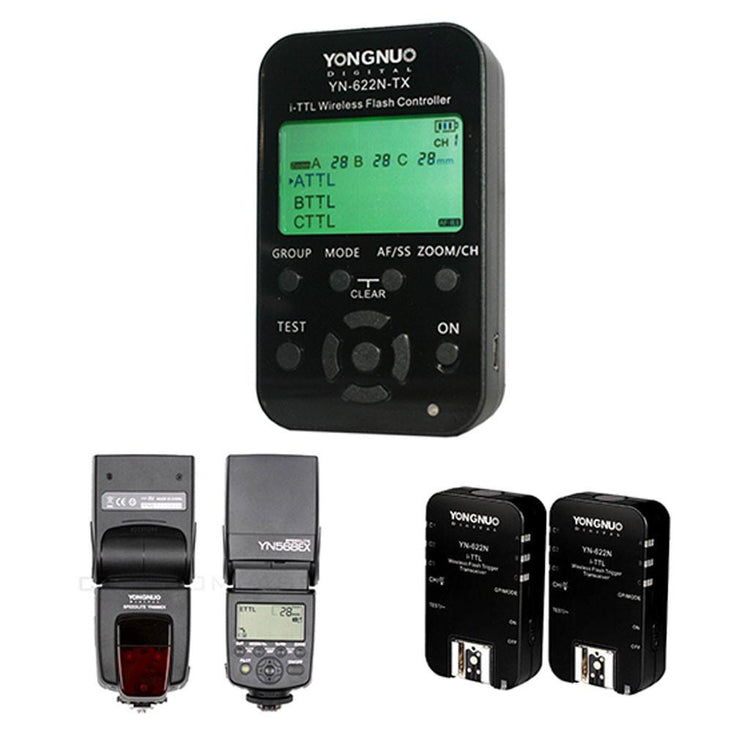

This Wireless Control Flash and Trigger Kit includes:

1x YN622N-TX (Receiver), 2x YN622N (Trigger), 2x YN568EX (Flash)

With the integrated wireless automatic (TTL, HSS) and manual flash control system, this kit  features the most advanced techonology in the market.

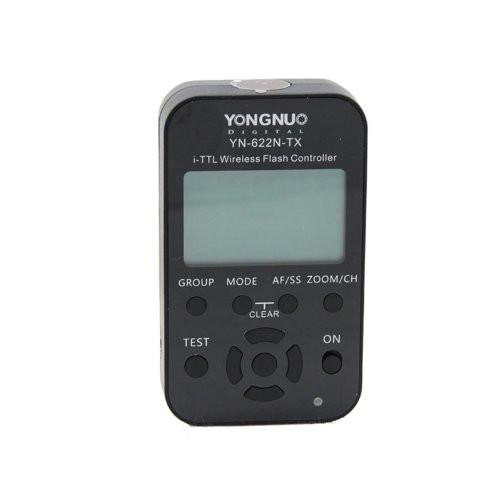

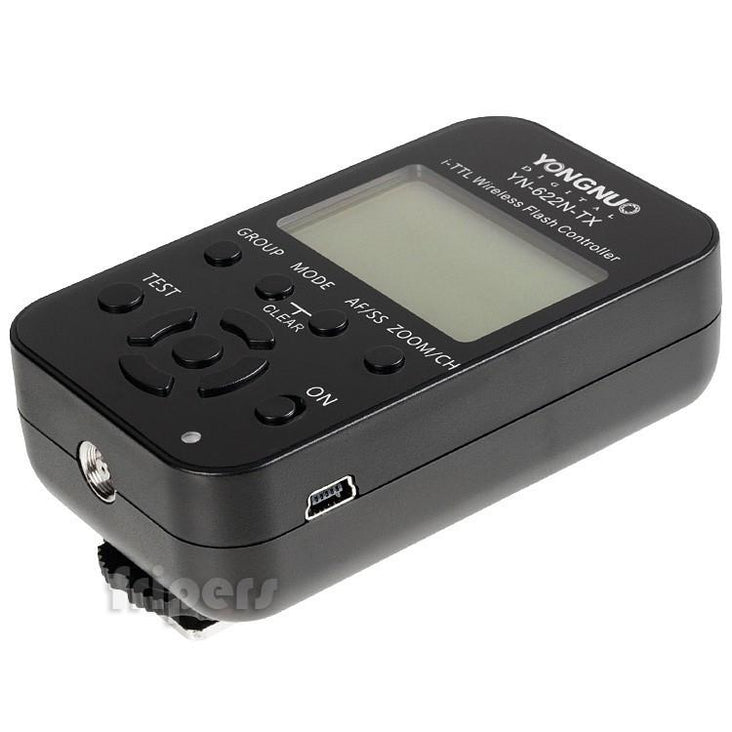

RECEIVER:YN622N-TX

This product adopts flexible LCD menu control, supporting mixed use of the A/B/C three groups of flashes using i-TTL, manua, or super sync flash mode and equipped with the AF-assist beam emitter. LCD screen display, multi-buttons quick operation

• The firmware can be upgraded through the USB interface
• Support wireless shutter release function
• The focal length(zoom)of the A/B/C three groups of flash can be adjusted separately
• Grouping flash mode: i-TTL/Manual flash/Super sync
• Supporting mixed use of the A/B/C three groups of flashes with i-TTL, Manual flash, or Super sync flash mode
• The exposure compensation or flash output of A/B/C three groups of flashes can be adjusted separately
• Shutter Sync: first curtain sync, second curtain sync and FP high-speed sync, the highest sync speed is 1/8000s
• Support exposure compensation, flash value lock function(FVL)
• Support simulate (modeling) flash, red-eye reduction flash
• Support the flash zooming (auto)
• Super Sync (SS) time delay adjustment, for higher x-sync speed than the camera allows
• Settings saved automatically
• The flash sync signal can be input through the PC port
• Support the basic flash trigger (max sync speed is 1/250s) of standard hot shoe (non Nikon body)
• *The above functions need to be used with the YN-622N transceiver.

TRIGGER:YN-622N

Yongnuo First Wireless i-TTL Flash Trigger YN-622N is Released now, it's designed for Nikon Camera.Using Digital FSK 2.4GHz frequency band with 7 channels, it has three mode, i-TTL, Manual and RPT, and it can fire flashes at 360 degree direction, the operating range is 100 metres.It supports FEC, FVL, High-speed Sync, Front Curtain, Rear Curtain, Modeling flash, i-TTL, Manual/RPT, Manual mode, Auto Zooming, AF Lamp.

Main function:

a),Support Full I-TTL Pass-through function when on camera
1), Mount one YN-622N transceiver into the hot shoe of camera, and mount other transceiver into the hot shoe of flash, you can trigger the flash at any direction in TTL, Manual or RPT mode.
2), Mount flash on hot shoe of YN-622N transceiver on camera, mount the second flash on other transceiver, both of flashes can be trigger at any direction in TTL, Manual or RPT mode.
Note: Speedlites on hot-shoe of transmitter support i-TTL/ Manual / RPT

b), Shutter Sync
1), High-speed Synchronous
The max. sync speed is 1/8000s, but some camera is just 1/4000s, and for those cameras and flashes who don't suport HSS, the sync. speed is just 1/250s or less, different cameras have different Sync speed.
2), Front Curtain Sync
3), Rear Curtain Sync.

c), Remote Control Function
The parameter of flashes on hot shoe of receivers can be set up remotely through the camera manu directly.

d), Supporting mixed mode.

With this function, you can trigger remote speedlites in different modes, set up one YN-622N transceiver on hot shoe of flash in TTL mode, set up the second YN-622N transceiver on hot shoe of flash in manual mode, and the third YN-622N transceiver on hot shoe of flash in multi mode, all three flashes can be fired via the transceiver on hot shoe of camera, this mode is especially useful for those camera bodies without a built-in flash menu.

Note: Only FEC;FVLRatio and Shutter sync can be set in the camera side. Manua and Multi output need to be set on the flash speedlite.

e), Work with Strobe Studio flash light in HSS function
You can buy a PC Sync Cable RF-603 6.35mm cable to connect the transceiver with the studio flash, and then youcan use the non-high speed sync flash to realize higher syc and then you can use them together in HSS. The max. trigger voltage is less than 300 Voltage.

Note: The PC port is for output using only.

f), Awaking function
When half-pressing the shutter button of the camera, the hot shoe flash on the receiver will be awakened. ( for those flash has wake up function )

g), Zoom Function
Zoom Automatic: length will be changed depanding on the changes of lens.

h), Support Single-contact of camera and flash triggering ( the max. Sync. speed is 1/250s )
You can use it with Nikon camera or Nikon flash, but you just need to set up YN-622N in manual mode.

i), Flash Fire Ratio with I-TTL
You can set up different flash fire ratio and FEC for those flashs on hot shoe of receiver.
j), Support 2pcs AA batteries, ( 1.2v rechargeable battery ), Stand-by time is 60hours.
k), Dimension: 89.5 * 53 * 39MM, net weight is 78g.
Note: There is a PC Sync port for YN-622N transceiver, you can use RF-602 PC / PC Cable to connect it with flash.

Suit for
(Camera) : Nikon D800E D800 D700 D300S D300 D200 D7100 D7000 D90 D80 D5200 D5100
D5000 D3200 D3100 D3000
Flash compatible (i-TTL): SB400 SB600 SB700 SB800 SB900 SB910 SU800
YN465N YN467N(II) YN468N(II) YN560II YN560III YN565Nex YN568Nex

SPEEDLITE: YN-568 EX

#1, Supports Hight-Speed Sync Flash
Yongnuo YN568EX is the first speedlite supports high-speed flash in china; with high-speed sync (FP flash), the YN568EX can synchronize with all shutter speeds, the maximum shutter sync up to 1/8000.

#2, Compatible with Nikon and Canon Wireless Flashing System
One YN568EX is able to respectively accept internal flashing of 580EX II, SB-900/800/700, 7D/60D/600D, C order of N’s internal flashing and ST-E2 wireless signal, achieves external TTL and manual flashing. Some beckoning functions such as wireless TTL flashing, grouping light ratio TTL flashing and the illumination of remote controlled flashing can be easily attained only if you carry a camera with built-in flashing command system and YN568EX.

#3, A new TTL Flash With Large Guide Number
GN58@ ISO100, 105mm; which reaches the level of the mainstream hot shoe flashes, supports HSS, TTL/M/Multi mode.

#4, Multiple Trigger More Supported
The YN568EX can be triggered by the camera set-top, built-in or main-controlled flashing command, S1 and S2 (pre-flash-canceled mode).

#5, Supports Auto/Manual Zooming
The covered focal length will vary among auto, 24~105mm on the lamp adapter by operating the zoom button on the flash light, supports full-frame/half-frame camera.

#6, Comprehensively Support TTL Functions
The YN568EX supports HSS, FEC, FEB, Rear-curtain sync, FE lock, Modeling Light, Canon camera menu accessible

#7, Super Speed Of Charging Recycle
The time for full gloss output current-return will only take you 3 seconds; you can get fast current-return experience even without brand-new batteries, which will only take you 4~5 seconds.

#8, Completed With 2.5mm PC Synchronous Interface
It makes things easier on lightening the flashlight synchronously by using PC synchronous line

#9, Sound Prompting System
When the sound prompting system is enabled, the different sound ways will prompt the different working conditions of the flashlight so as to make you focus on shooting only.

#10, Modeling Light Function
Press down the camera’s depth-of-fired preview button, the YN568EX will send out continuous flash lasting one second.

#11, Advanced Settings On Flash
The YN568EX has advanced options setting function, where you can self-define the functions of the flashlight on your own requirements.

#12, Automatic Setting Saving
YN568EX automatically save the operation currently used for your future use.

#13, LCD Panel User Interface With Super Gelivable Metal Hot-Shoe Stand
